ROPE LAYER FOR 2÷8 MM DIAMETER ROPES

This rope layer represents an important novelty among SIMA rope layers as this machine is suitable to produce small diameters, from 2 to 8  mm, with the max economical convenience.
SIMA rope Layer Mod 280/4 is made up of a feeding section, running with 3 or 4 strands and of a take-up section, which is SIMA well known twister winder Mod.GS2016E.
The system conceived in this way leaves complete freedom to the customer concerning its use, because they can decide either to use the machine complete as a rope layer or use only the take-up section as a twister.

Rope Layer Mod 280/4 runs on the principle of the 2 twists in the feeding section (B) and 2 twists in the take-up section (A):
mechanically speaking the cynematism introduced in the machine have been considerably simplified, lowering the noise level.

The main features of the machine are:

  • Set up of 280/4 though the control panel of GS2016E
  • Electronic change of pre-twist ratio
  • Device to detect the strand breakage
  • Immediate change of rotation direction S or Z
  • Special take-up version for bobbins or coils

MODELS

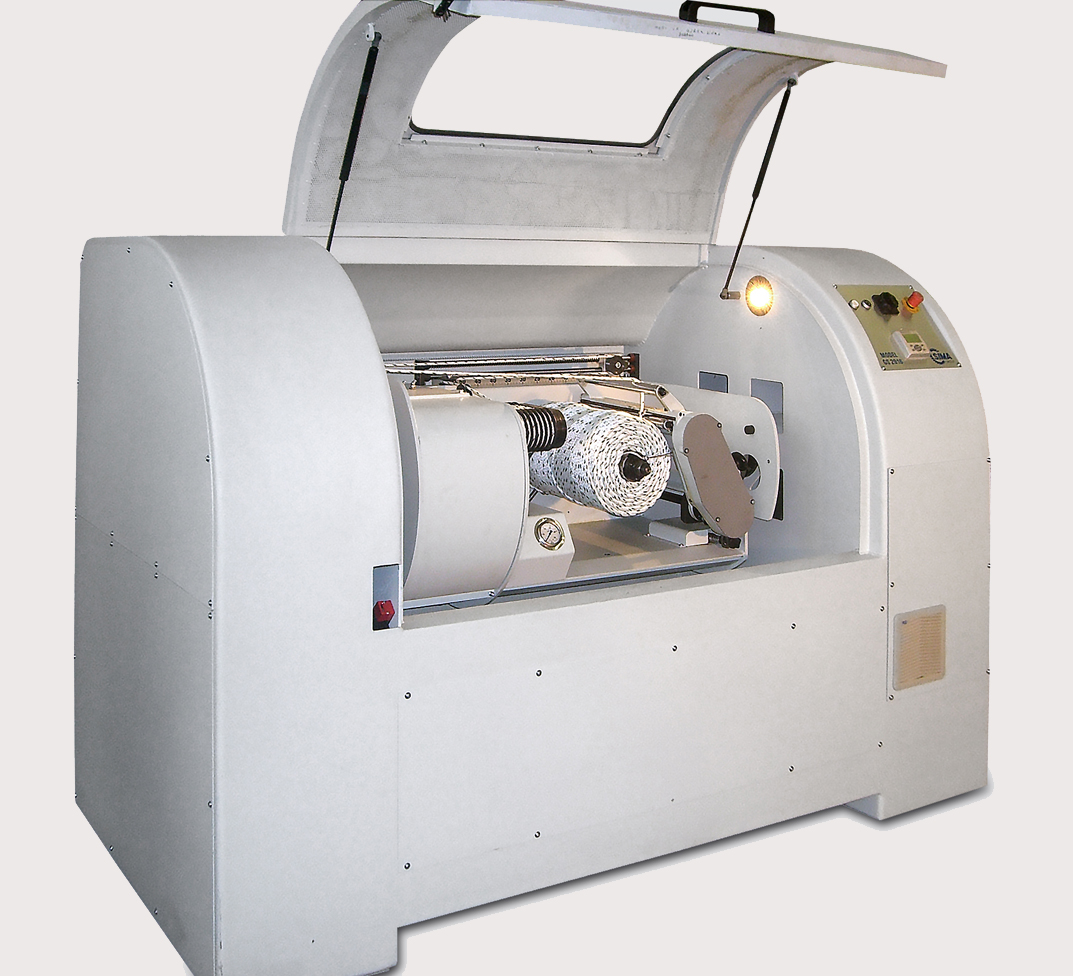

TWISTER WINDER MOD. GS2016E

Take-up on spool from min. 6”x6” to max. 16”x16”.
A.C. driving motors + inverter (11 kW)
Mandrels

MAIN FEATURES

  • multiple use for the production of spools with tube
  • expansion type with link rods for spools without tube
  • Set of toothed pulleys + belts, for twists change.
  • Pneumatic control of cover.
  • Inside lightening.
  • Main A.C. motor with speed change by means of operator panel
  • Set of gears wheels for winding pitch change.
  • Operator panel with meter-counter for automatic stopping of the twister at achievement of preselected length of the spool.
  • Maintenance accessories.
  • Electrical yarn-braking device complete with additional braking with 5 pulleys.
  • Draw compensator
  • Separated electric-electronic control board, incorporated inside the base

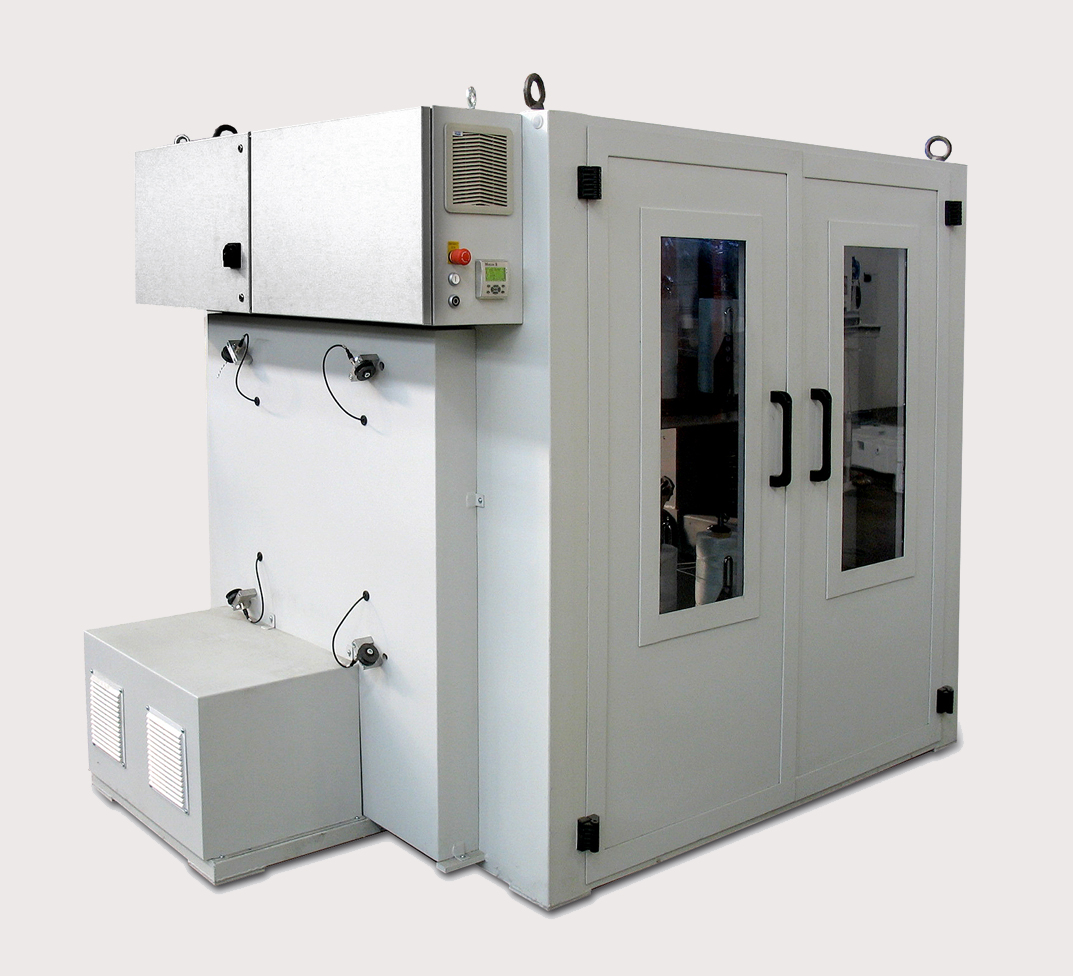

PRE-TWISTING UNIT MOD. E 280

The E 200/4 is made of a feeding section, running with 3 or 4 strands.

MAIN FEATURES

  • Set-up of E 200/4 through the control panel of GS2000E
  • Electronic change of the pre-twist ratio
  • Device to detect the strand breakage
  • Immediate change of the rotation direction S or Z
  • Feeding up to 12 bobbins of 12”x12”.
